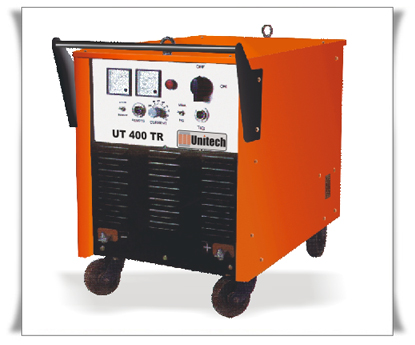

Thyristorised Welding Rectifiers (Inverter Based Welding Machines)

	Accurate and repeatable welding current setting for MMA welding with exceptional arc stability and controlled heat input.
	True vertical welding current characteristics.
	Stable arc with regular droplet transfer.
	Constant penetration for more regular welds
	Less Spatter.
	Built-in electronically controlled ' Antistick ' for prevention of electrode freezing and ' Hot Start ' for improved starting.
	Built-in-protection against H.F. interference and thermal run away.
	Power Source suitable for TIG welding when connected with TIG console for NORMAL AND PULSED TIG.

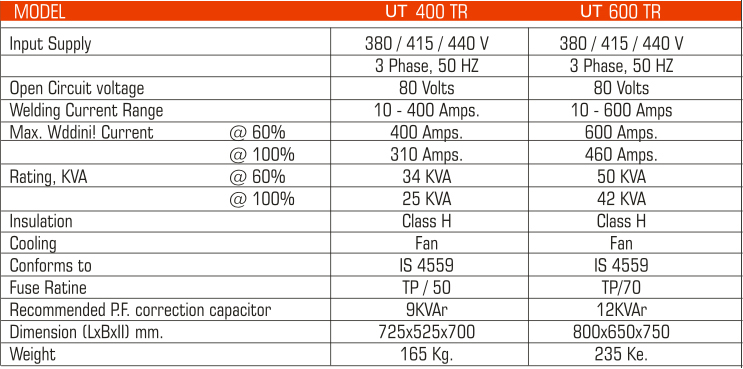

Specification

Application :-

Fabrication and repair of nuclear plant, chemical process plants, refineries, Steel plants, thermal power plants etc.

Note :-

1) In view of continuous development, we reserve the right to modify the design and / or dimensions without notice.

2) Optional Extras :- Power factor correction capacitors, remote control unit (wherever applicable ) standard set of welding accessories etc. can be provided at extra cost.
