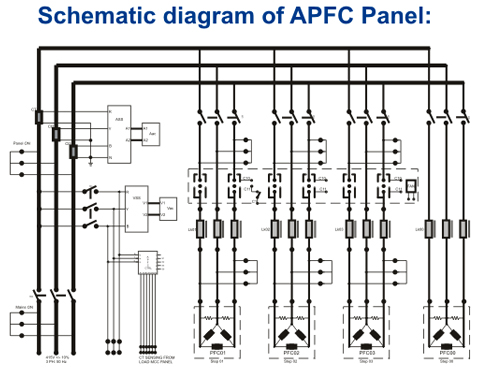

| kapasiteit |
: |
kvar |
| fase |
: |
Delta Connection |
| insetspanning reeks |
: |
380/415/440volt , 3fase , 50/60Hz |
| stelsel |
: |
gebalanseerde / ongebalanseerde |
| skakel tipe |
: |
S-tipe (SCR skakel) |
| konstruksie |
: |
Indoor, vloer toenemende laquà |
| beheer. opstel van die reeks vir die PF |
: |
- 0,8 Induktiewe (lag tot 0,8 kapasitiewe (lood) - 0,8 kapasitiewe |
| Isolasie |
: |
klas "B" |
| humiditeit |
: |
Tot 95% RH |
| werktemperatuur |
: |
-0,5 Te 45degree C |
| beskerming: |
|
|
| insette MCB / mccb |
: |
vir inkomende APFC paneel |
| insette MCB / mccb |
: |
vir PF GLB van elke stap / Bank |
| untuned lyn verstik |
: |
Fof PF GLB van elke stap / Bank van 4% lynspanning |
| termiese beskerming |
: |
oormatige verhitting van heat sink op 70 grade C |
| koeler |
: |
huidige sensing vir aantrekhokkie en elke koeling |
| aanduidings |
: |
hoofleiding op ------ beheer oor ----- APFC paneel op
koeler op ---- stap MCB op --------- statiese skakelaar op |
| instrumentasie |
: |
APFC paneel insette voltmeter met schakelaar
AC huidige meter met selector switch en CT
Power Manager (opsioneel) |
| skakel tipe |
: |
statiese Switch / vuur modules vir elke stap |
| apfc kontroleerder |
|
|
|
aanduidings |
|
outomaties |
|
drie syfer numeriese display |
|
handleiding |
|
kapasitiewe en induktiewe. (leiding en nalopend) |
|
huidige |
|
stap oor aanwyser |
|
THD (totale harmoniese distorsie) |
|
op-knoppie |
|
Set Cos ø |
|
mode / browse knoppie |
|
C/K |
|
omlaag |
|
sensitiwiteit |
|
program knoppie |
|
Recon Tyd |
|
gegradeerde stappe |
|
schakelprogramma |
|
|
|
THD (totale harmoniese distorsie) beperk |
|
|
| |
|
|
|
alarm toewys vir 'n gegewe parameters - huidige THD, huidige <3% gegradeerde waarde, huidig> 110% beoordeeld waarde, spanning <85% gegradeerde waarde, spanning> 110% beoordeeld waarde ", lae PF wanneer alle cap. verbind, Hi PF wanneer geen cap. verbind is, outomaties c / k stap meting fout (handleiding instelling vereis), outomaties ct polariteit fout.
|
| |
|
|
tegniese data |
1) hulp toevoer |
: |
toevoerspanning: 220vac / 415vac -15% / 10% 50/60Hz verbruik - 10va Max. |
2) current input |
: |
gegradeerde stroom in: 5A gebruik grense: 0.15A-6.5A 50/60Hz |
3) relais uitgange |
: |
aantal van die afvoer: 6/8/12/14 (PFR60/PFR80/PFR120/PFR140)
|
| |
aangeslane kapasiteit-5a 250vac kontakte: nee-tipe-Max stroom vir 'n gemeenskaplike terminals: 12a deurlopende |
| 4) Control reeks: |
: |
C / K Kader: 0,03 - 1,20 / ATC skakel sensitiwiteit: 500-600 s / stappe
|
| |
|
heraansluiting tyd vir dieselfde stap: 5-240s THD drumpel: 0,20-3,0 (20% -300%) / uit |
| |
|
skakel program: outomaties / outomatiese roteer / handleiding / vier kwadrant |
| |
|
gegradeerde stap koëffisiënt: 0/1/2/3/4/5/6/8/12/16 |
5) Control reeks: |
: |
Bevestiging: paneel montage dimensie (H x W x D) 144 x 144 x 91 WT: 1kg. |
| |
|
|
|
| |
|
|
K Type Specification |

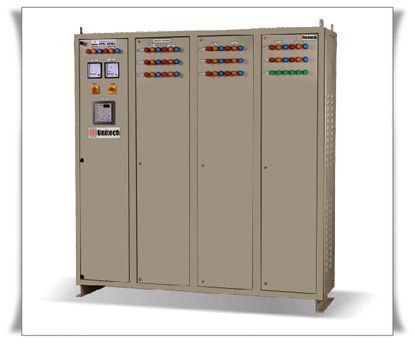

| APFC PANEL |
: |
K TYPE |
| Capacity |
: |
kVAR |
| Phase |
: |
Delta connection |
| Input voltage range |
: |
380/415/440volt, 3phase, 50/60Hz |
| System |
: |
Balanced/unbalanced |
| Switching Type |
: |
K-type (contactor switching) |
| Construction |
: |
Indoor, floor mounting powder coated |
| Control Range setting for PF |
: |
0.8 Inductive – 0.8 Capacitive |
| Insulation |
: |
Class “B” |
| Humidity |
: |
Upto 95% Rh |
| Operating temperature |
: |
-0.5 to 45degree C |
PROTECTION : |
| Input MCB/MCCB |
: |
For incoming APFC panel |
| INDICATIONS |
: |
Mains on ------ control on ----- APFC panel on
Cooling fan on --- Step MCB on |
| INSTRUMENTATION |
: |
APFC panel input voltmeter with selector switch
AC Ammeter with selector switch and CT
Power manager (optional) |
| SWITCHING TYPE |
: |
Contactor |
APFC CONTROLLER. |
|
Indications |
|
3 digit numeric display |
|
Manual |
|
Capacitive and Inductive. (Leading and lagging) |
|
Current |
|
Step ON Indicator |
|
Thd (total harmonic distortion) |
|
Up Button |
|
Set Cos ø Power Factor |
|
Mode / Scroll Button |
|
C/K |
|
Down Button |
|
Sensitivity |
|
Program Button |
|
Recon Time |
|
Rated Steps |
| Switch Program |
|
|
Thd (total harmonic distortion) Limit
Alarm assign for one of given parameters – current thd, current <3% rated value, current >110% rated value, voltage <85% rated value, voltage>110% rated value`, low pf when all cap. connected, hi pf when no cap. connected, auto c/k step measurement error (manual setting required), auto CT polarity error. |
| |
|
|
TECHNICAL DATA |
1) AUXILLARY SUPPLY |
: |
Supply voltage: 220VAC/415VAC -15% / +10% , 50/60 Hz consumption – 10VA max |
2) CURRENT INPUT |
: |
Rated current In: 5A operating limits: 0.15A -6.5A 50/60Hz |
3) RELAY OUTPUT |
: |
Number of output: 6/8/12/14 (PFR60/PFR80/PFR120/PFR140)
|
| |
Rated capacity-5A 250VAC Contacts: NO TYPE Max current for comman terminals: 12A continuous |
4) CONTROL RANGE: |
: |
C/K setting : 0.03 – 1.20 / atc switching sensitivity : 5-600 s/steps
|
| |
|
Reconnection time for same step : 5-240s thd threshold : 0.20-3.0(20%-300%)/off |
| |
|
Switching program : automatic/automatic rotate/manual/four quadrant |
| |
|
Rated step coefficient : 0/1/2/3/4/5/6/8/12/16 |
5) MECHANICAL |
: |
Bevestiging: paneel montage dimensie (H x W x D) 144 x 144 x 91 WT: 1kg. |
