| Specifications :- |
|
| |

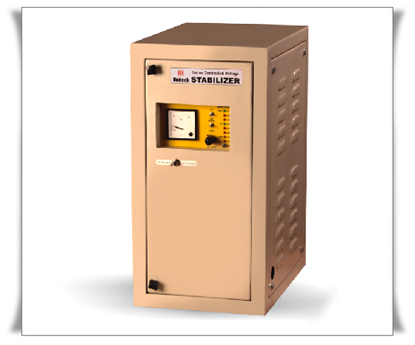

| Servo Controlled Voltage Stabilizer (Three Phase) |
| |
 |
 |
Air cooled |
Oil Cooled |
|
|
| |
|
| |
| Optional Accessories :- |
1) MCCB on Input side.
2) Over / Under Voltage cut off through contactor on Output side.
3) Digital metering on request.
4) Single Phase Preventer.
5) Surge suppressor
6) RFI |
| |
| Salient Features :- |
|
No Waveform Distortion |
|
Highly reliable control circuit using Industrial / military grade components. |
|
Continuous Duty Cycle |
|
Class 'B' Insulation |
|
Rugged Construction |
|
High Reliability |
|
Auto / Manual Operation |
|
High Efficiency (above 98%) |
|
No load losses are very less |
|
Long trouble free service life |
|
Voltmeter with I/P, O/P selector switch |
|
Instantaneous quick response |
|
Built in Ammeter above 25KVA |
|
|
|
| |
| Panel indication |
Other Controls on front Panel |
 |
|
Input - Output Selector switch
Auto/ Manual Selector switch
Increase or Decrease switch to set output voltage in Manual mode
Trip with manually reset by push button |
| Voltmeter of appropriate range with selector switch |
|
| |
| Protection :- |
|
Input HI / LO, Output HI / LO/ OL protection with Auto / Manual Reset facility with respective fault indication & audible alarm (Buzzer) provided on Panel Display with Trip Indication and push button. |
|
For power contactor switching ON / OFF / Tripping, 240V / 5A rated (NC) contact will be provided for external application / interlocking. |
|
| |
| Applications :- |
| Textile
Machineries | Printing Industry | Pharmaceutical Industry | CNC Machines | Hospitals | Flim Industry | Food processing Industry | Resorts / Hostels / Farm house | Engineering Plants | Automobile Industry | IT Industry. |
| |
| |
| |
